Do not start the pump without having completely filled it with liquid. Before starting up, check that the pump is properly primed; fill it completely with clean water by means of the hole provided after having removed the filler cap on the pump body. This ensures that the mechanical seal is well lubricated and that the pump immediately starts to work regularly. Dry operation causes irreparable damage to the mechanical seal. The filling cap must then be screwed back on carefully. Switch on the power and, on three-phase-versions, check that the motor is turning in the right direction, that is clockwise when viewed from the fan side. Otherwise invert any two phase leads, after having disconnected the pump from the mains. The electropump should not be started more than 20 times in one hour so as not to subject the motor to excessive thermal shock. We recommend you read the instruction manual of the Euro, EuroInox, EuroCom (also available in our DNA software) for useful information for use, maintenance and installation of the product.
Was this FAQ helpful?

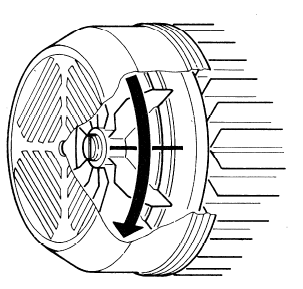

The motor rotation direction may be inverted only in the three-phase motor pumps (400 volt). In single-phase pumps (230 volt) the motor always turns in the correct direction. We recommend you read the instruction manual of the Euro, EuroInox, EuroCom (also available in our DNA software) for useful information for use, maintenance and installation of the product, including the procedure for checking the direction of rotation, which must be clockwise, as in the figure:
Was this FAQ helpful?

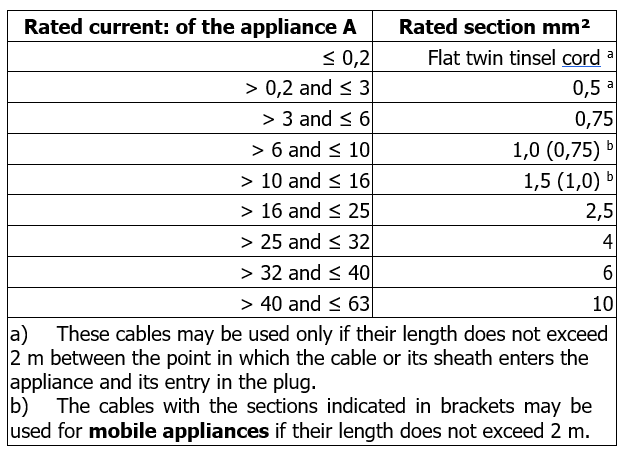

When replacing the power cable, a cable of the same type must be used (e.g. H05 RN-F or H07 RN-F depending on the installation) and with the same terminals, proceeding as for disassembly in inverse order.
ATTENTION: depending on the installation and if the pumps have no cable, fit supply cables type H05 RN-F for indoor use and type H07 RN-F for outdoor use, complete with plug (EN 60335-2-41). For power cables without a plug, provide a device for cutting off the mains (e.g. magnetothermal device) with separating contacts of at least 3 mm for each pole.
We recommend you read the instruction manual of the Euro, EuroInox, EuroCom (also available in our DNA software) for all relevant information.
